6" / 150mm

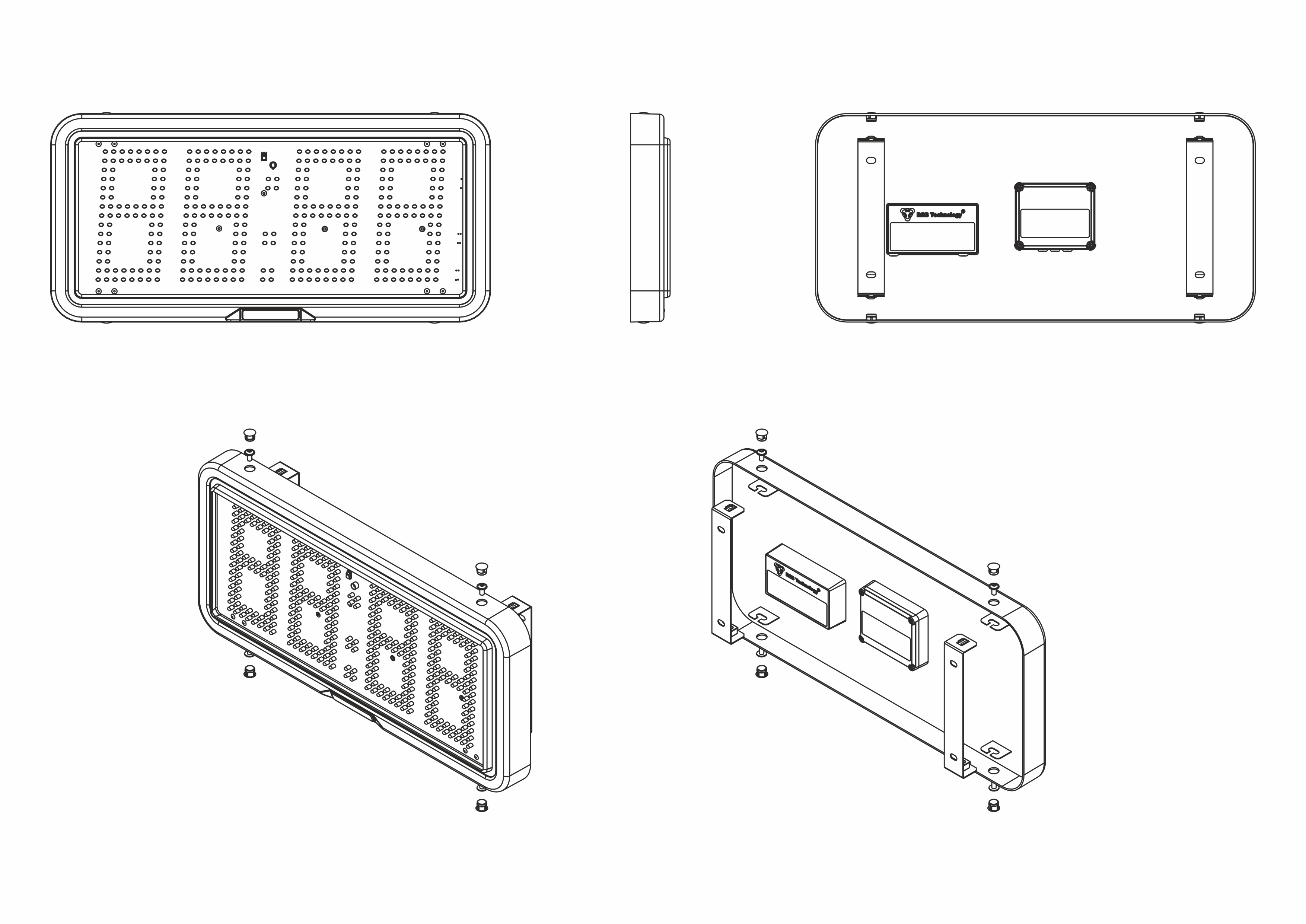

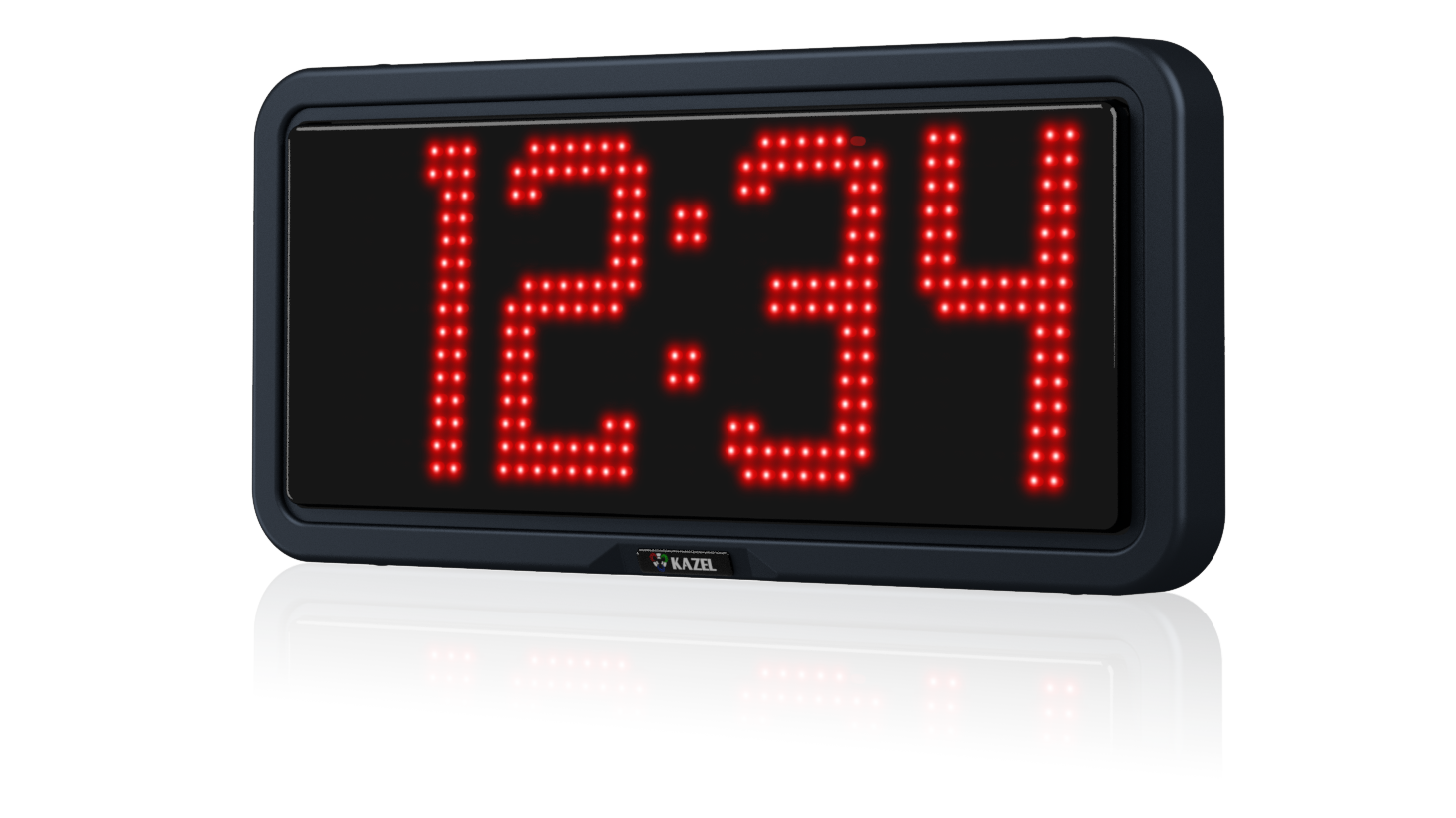

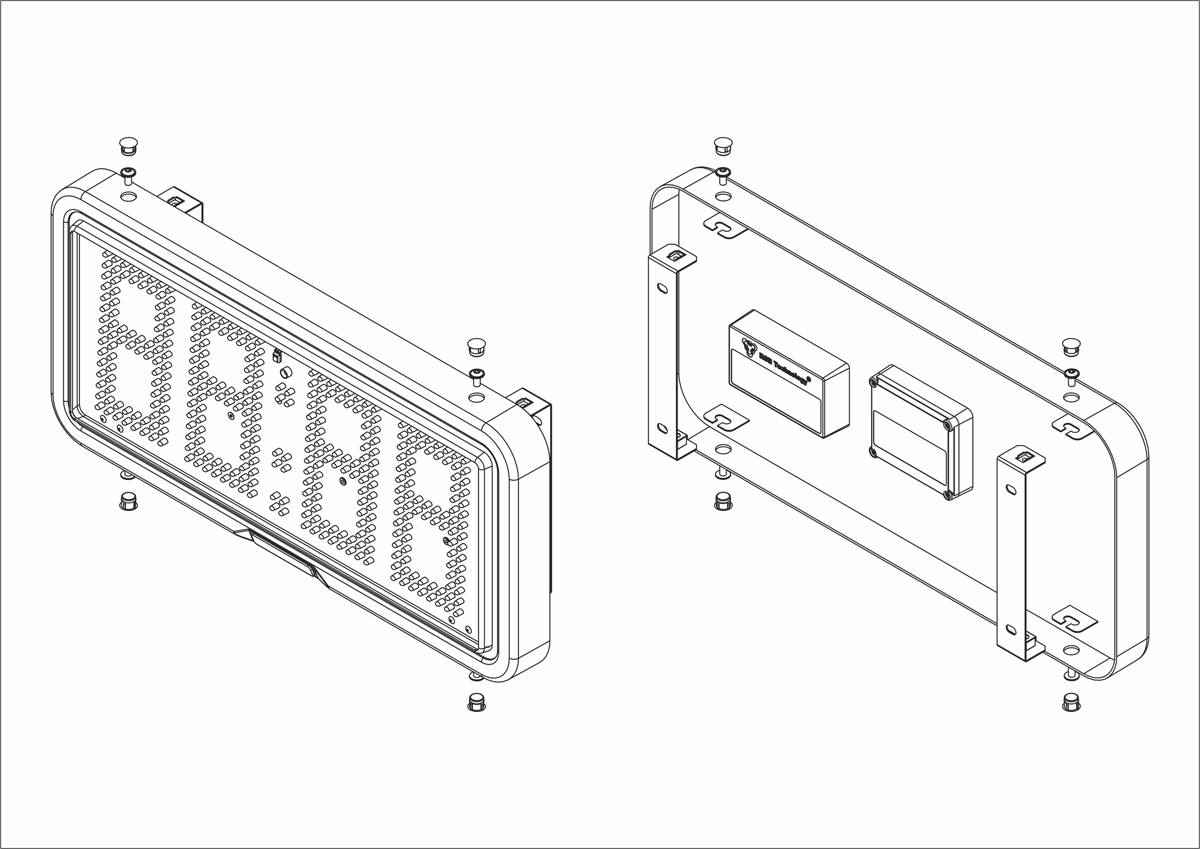

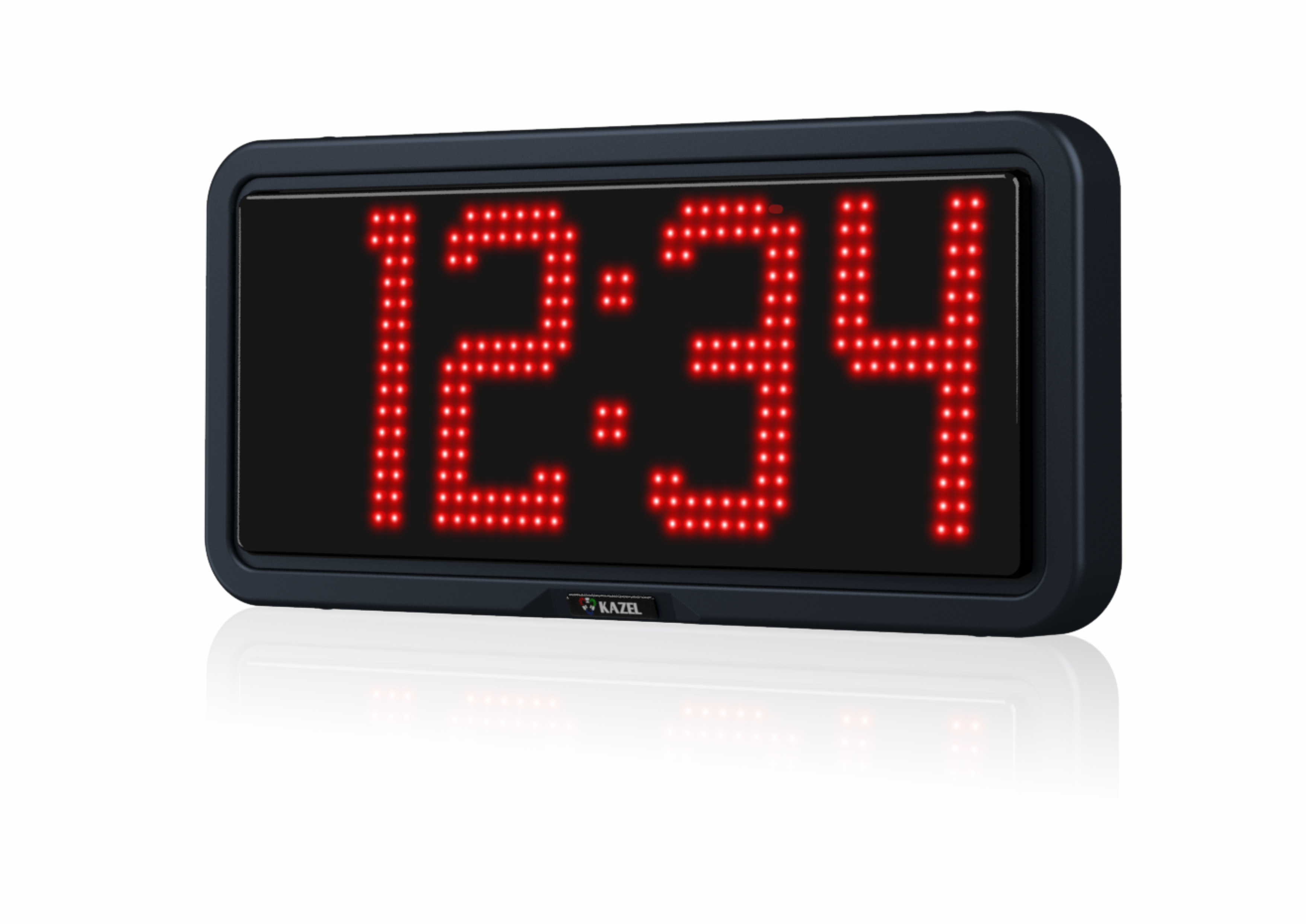

4in clock has a housing made of polycarbonate, which is resistant to UV radiation and has a high mechanical strength. By using the thermo-moulded housing and a rear sealing layer, the device, when properly assembled, meets the IP66 tightness requirements.

Display Specification

Version
ZA-15
Dimensions (WxHxD):
19.7" x 9.3" x 1.8" / 500mm x 237mm x 45mm
Digit height:
4" / 100mm
Permissible input voltage range (long-term):
100 ÷ 240 VAC
Permissible input voltage range (short-term):
85 ÷ 264 VAC
Acceptable input voltage frequency range:
47 ÷ 63 Hz
Device operation temperature (ambient):
-13°F ÷ 113°F / -25°C ÷ 45°C
Device operation temperature (device surface):
-13°F ÷ 140°F / -25°C ÷ 60°C
Average power consumption:
12W
Casing tightness rating IP:
66
Device weight:
5.5lb / 2.0kg

Download

Software
Title Version Size Download
RGB ClockSet 1.01 8 062 KB
Datasheets and Manuals
Title Size View
WA-1 MINI OPERATION AND MAINTENANCE MANUAL 1 309 kB
WA-1 MINI DEVICE USER MANUAL 1 411 kB

To request a quote please send us an e-mail: time@kazel-displays.com
