RM-470TL

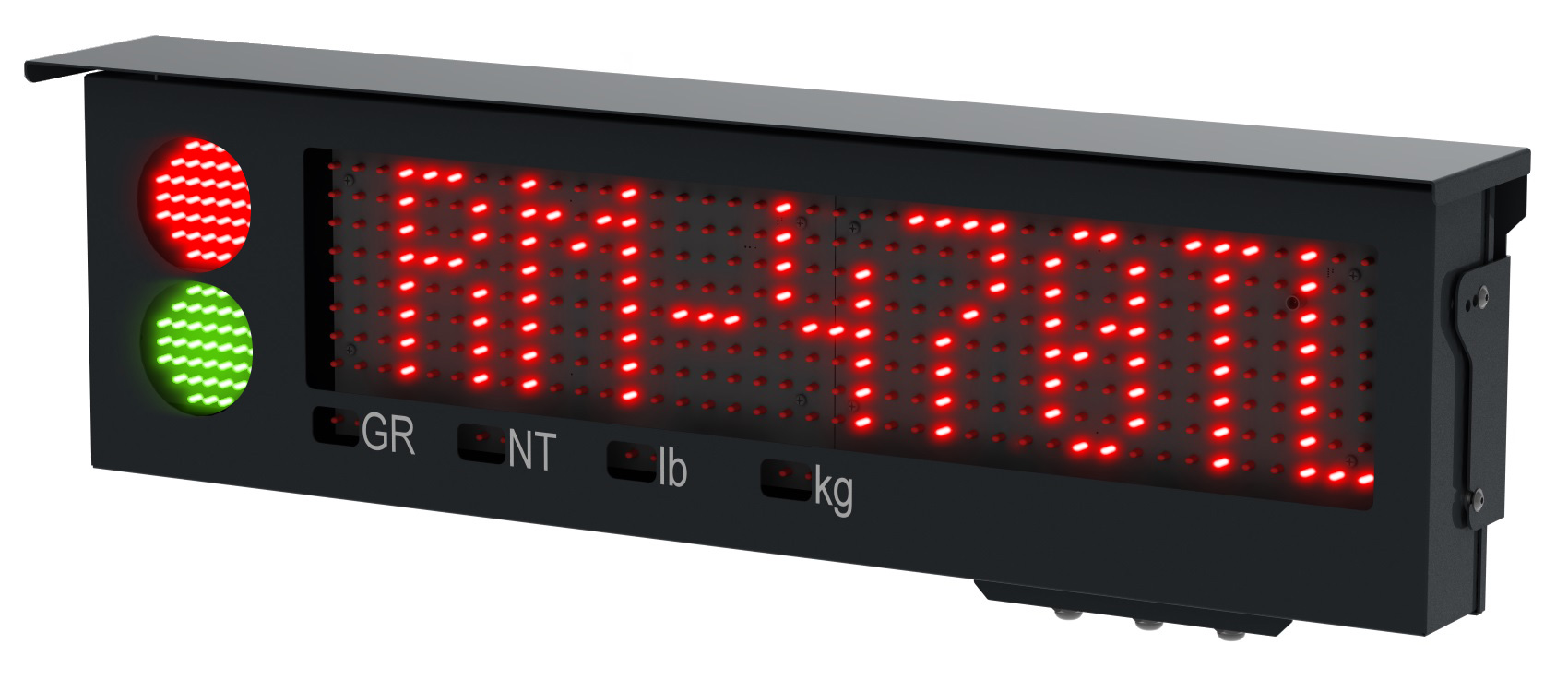

RM-470TL is our new 2022 release our most advanced remote display, now featuring integrated traffic lights. It includes Kazel Auto-Learn technology – our complex algorithm makes it a plug & display device which is up and running within a few seconds. It communicates with virtually every weighing indicator and all extra features can be configured via an upgraded easy-to-use WagSet 3 software

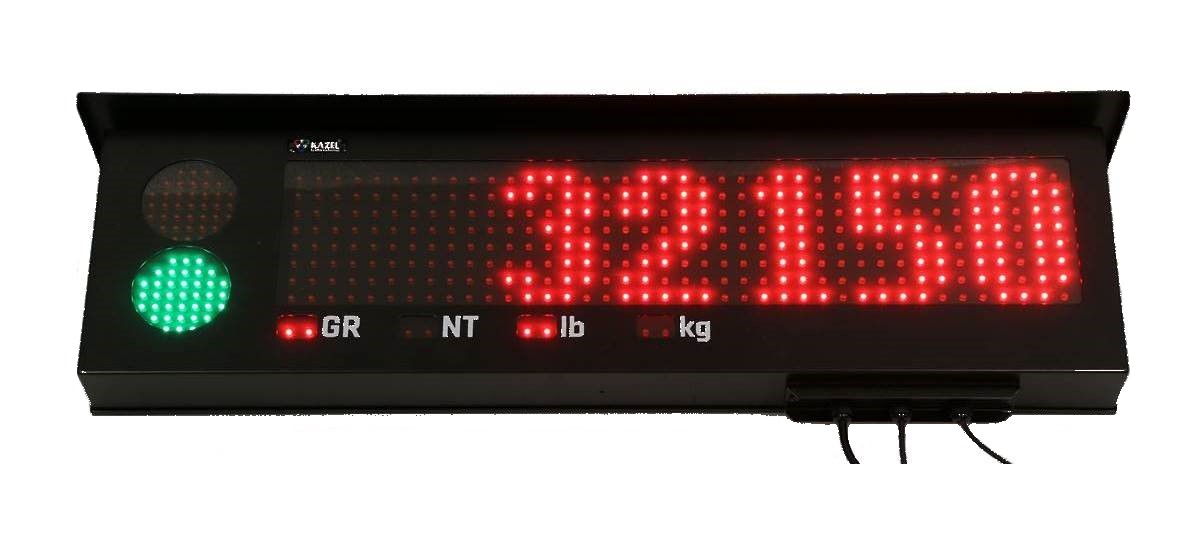

RM-470TL comes in a powder coated steel housing which includes a drop-down electronics carriage for quick and easy installation and service. 8x40 pixels, 2.7” traffic lights, 4.7” full matrix LED boards allow to display not only the weighing score, but also various info and advertising messages. Viewing distance of approx. 170 ft.
KAZEL Auto-Learn technology
2.7” Integrated Traffic Lights controlled by indicator or dry contact
Ethernet interface as standard
Firmware updates over the web panel
Super bright LEDs
Full matrix 8x40 pixels alphanumeric display
4.7” character height
Visibility of approx. 170 ft
Powder coated steel housing
Ingress Protection IP65
Dimensions: 31.1” W x 8.7” H x 2.9” D (not including accessories)
Net Weight: 14.5 lb (not including accessories)
RM-470TL our most advanced remote display
Display Specification
| Dimensions (WxHxD): (not including accessories) |
31.1in x 8.7in x 2.9in / 791mm x 220mm x 74mm |
| Digit height: | 4.7in / 120mm |
| Traffic lights diameter: | 2.7in / 70mm |
| Acceptable input voltage range (long-term): | 100 ÷ 240 VAC |
| Acceptable input voltage range (short-term): | 85 ÷ 264 VAC |
| Acceptable input voltage frequency range: | 47 ÷ 63 Hz |
| Operating temperature (ambient): | -13°F ÷ 113°F / -25°C ÷ 45°C |
| Operating temperature (device surface): | -13°F ÷ 158°F / -25°C ÷ 70°C |
| Average power consumption: | 7W |
| Ingress protection rating IP: | IP 65 / NEMA 4 |
| Device weight: (not including accessories) |
14.5lb / 6.6kg |
Download
| Title | Version | Size | Download |
| RGB WagSet 3 | 3.04 | 20 682 KB |  |
| Title | Size | View |
| RM-470TL DATA SHEET | 2665 kB |  |
| RM-470TL DEVICE USER MANUAL | 1442 kB | |
| RM-470TL OPERATION AND MAINTENANCE MANUAL | 1860 kB | |
