TL-70-2

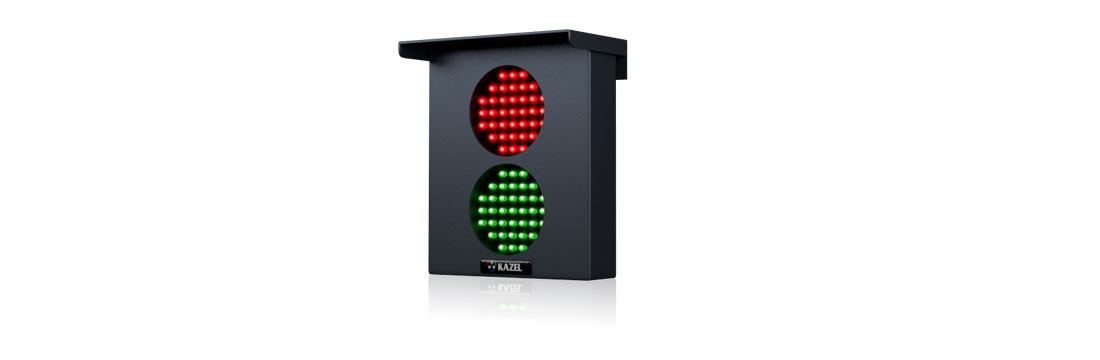

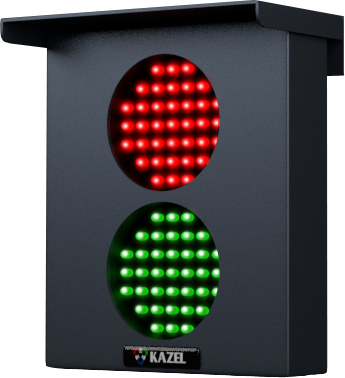

TL-70-2 TRAFFIC LIGHTS designed to control traffic, can be used combined with our WA Series. 2.8” diameter LED boards are able to show full lights, as well as arrows or other signs.

Apart from dry-contact operation, they can be configured and operated via RS232, RS485 or LAN

Multiple input interface

Super bright LEDs

2.8” diameter lights

Steel Casing (powder coated)

Ingress protection IP65

Dimensions: 6.6” W x 7.6” H x 3.4” D

Ship Weight: 3.3 lb (1.5 kg)

Display Specification

Dimensions (WxHxD): 6.6in x 7.6in x 3.4in / 168mm x 192mm x 86mm
Light field diameter: 70mm / 2.8in
Acceptable input voltage range (long-term): 100 ÷ 240 VAC
Acceptable input voltage range (short-term): 85 ÷ 264 VAC
Acceptable input voltage frequency range: 47 ÷ 63 Hz
Operating temperature (ambient): -13°F ÷ 113°F / -25°C ÷ 45°C
Operating temperature (device surface): -13°F ÷ 158°F / -25°C ÷ 70°C
Average power consumption: 5W
Ingress protection rating IP: 65
Device weight: 3.3lb / 1.5kg

Download

Datasheets and Manuals
Ttitle Size View
TL-70-2 OPERATION AND MAINTENANCE MANUAL 1 526 kB

To request a quote please send us an e-mail: scales@kazel-displays.com
