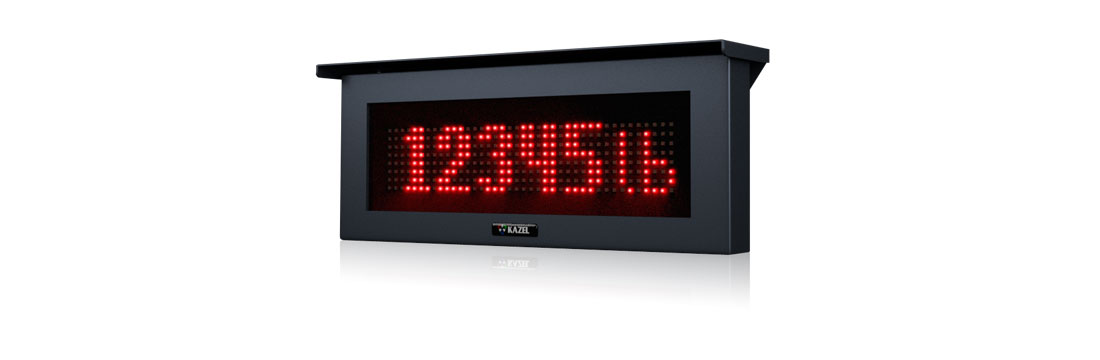

WA-1 OPTIMA
WA Series displays feature Kazel Auto-Learn technology which is one of the most advanced in the market of remote displays. Our complex algorithm makes them be plug & play devices which are up and running within a few seconds. They can be connected to virtually every weighing indicator and all extra features can be configured with easy-to-use WagSet 2 software.

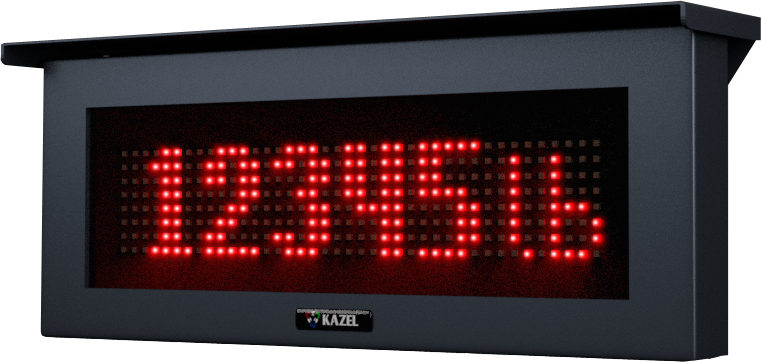

WA-1 OPTIMA is manufactured in powder coated steel housing. 8x40 pixels, 2.4” full matrix LED boards allow to display not only the weighing score but also various info and advertising messages.
KAZEL Auto-Learn technology
Super bright LEDs
Full matrix 8x40 pixels alphanumeric display
2.4” character height
Visibility up to 85 ft
Steel Casing (powder coated)
Ingress protection IP65
Dimensions: 16.8” W x 6.5” H x 2.4” D
Ship Weight: 6.6 lb (3.0 kg)
Display Specification
| Dimensions (WxHxD): | 16.8in x 6.5in x 2.4in / 426mm x 164mm x 60mm |
| Digit height: | 2.4in / 60mm |
| Acceptable input voltage range (long-term): | 100 ÷ 240 VAC |
| Acceptable input voltage range (short-term): | 85 ÷ 264 VAC |
| Acceptable input voltage frequency range: | 47 ÷ 63 Hz |
| Operating temperature (ambient): | -13°F ÷ 113°F / -25°C ÷ 45°C |
| Operating temperature (device surface): | -13°F ÷ 158°F / -25°C ÷ 70°C |
| Average power consumption: | 5W |
| Ingress protection rating IP: | 65 |
| Device weight: | 6.6lb / 3kg |
Download
| Title | Version | Size | Download |
| RGB WagSet 2 | 2.11 | 3 321 KB |  |
| RGB WagSet 3 | 3.04 | 20 682 KB | |
| Title | Size | View |
| WA-1 OPTIMA OPERATION AND MAINTENANCE MANUAL | 1 382 kB |  |
| WA-1 OPTIMA DEVICE USER MANUAL | 1 411 kB | |
