WA-2 INOX
WA Series displays feature Kazel Auto-Learn technology which is one of the most advanced in the market of remote displays. Our complex algorithm makes them be plug & play devices which are up and running within a few seconds. They can be connected to virtually every weighing indicator and all extra features can be configured with easy-to-use WagSet 2 software.

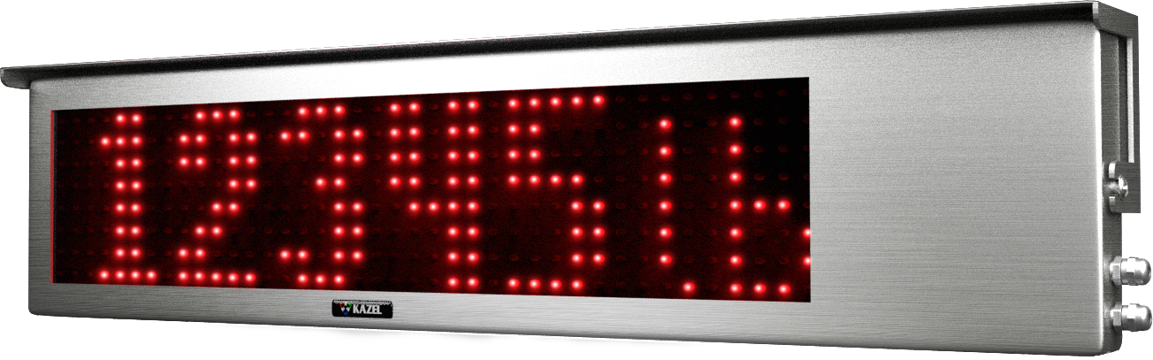

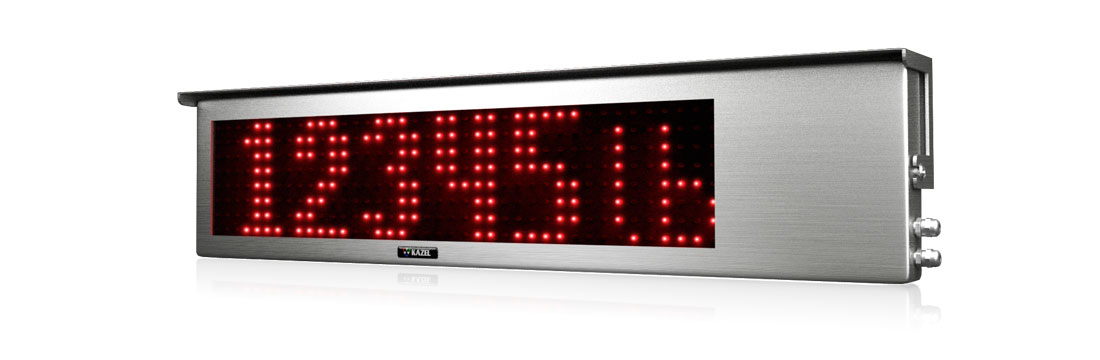

WA-2 PROFESSIONAL INOX, designed in stainless steel which provides reliable performance in challenging environments. Manufactured in stainless steel housing. 8x40 pixels, 4.7” full matrix LED boards allow to display not only the weighing score but also various info and advertising messages. Viewing distance of approx. 170 ft.
KAZEL Auto-Learn technology
Super bright LEDs
Full matrix 8x40 pixels alphanumeric display
4.7” character height
Visibility up to 170 ft
Stainless steel
Ingress protection IP65
Dimensions: 36.1” W x 7.1” H x 1.6” D
Ship Weight: 12.1 lb (5.5 kg)
Display Specification
| Dimensions (WxHxD): | 36.1in x 7.1in x 1.6in / 801mm x 180mm x 40mm |
| Digit height: | 4.7in / 120mm |
| Permissible input voltage range (long-term): | 100 ÷ 240 VAC |
| Permissible input voltage range (short-term): | 85 ÷ 264 VAC |
| Acceptable input voltage frequency range: | 47 ÷ 63 Hz |
| Device operation temperature (ambient): | -13°F ÷ 113°F / -25°C ÷ 45°C |
| Device operation temperature (device surface): | -13°F ÷ 158°F / -25°C ÷ 70°C |
| Average power consumption: | 8W |
| Casing tightness rating IP: | 65 |
| Device weight: | 12.1lb / 5.5kg |
Download
| Title | Version | Size | Download |
| RGB WagSet 2 | 2.11 | 3 321 KB |  |
| RGB WagSet 3 | 3.02 | 20 682 KB | |
| Title | Size | View |
| WA-2 INOX OPERATION AND MAINTENANCE MANUAL | 1 437 kB |  |
| WA-2 INOX DEVICE USER MANUAL | 1 411 kB | |
